 PRODUCT INFORMATION

SEE THE APOLLO DIFFERENCE

COLORS | CONFIGURATIONS | FEATURES | SPECIFICATIONS

COLORS AND FINISHES

The Apollo louvers and frames come in five standard colors: white, sand, bronze, pewter, and black. In addition, frames can be done in slate.

Additional colors

All systems are available in any custom color and specialty finish.

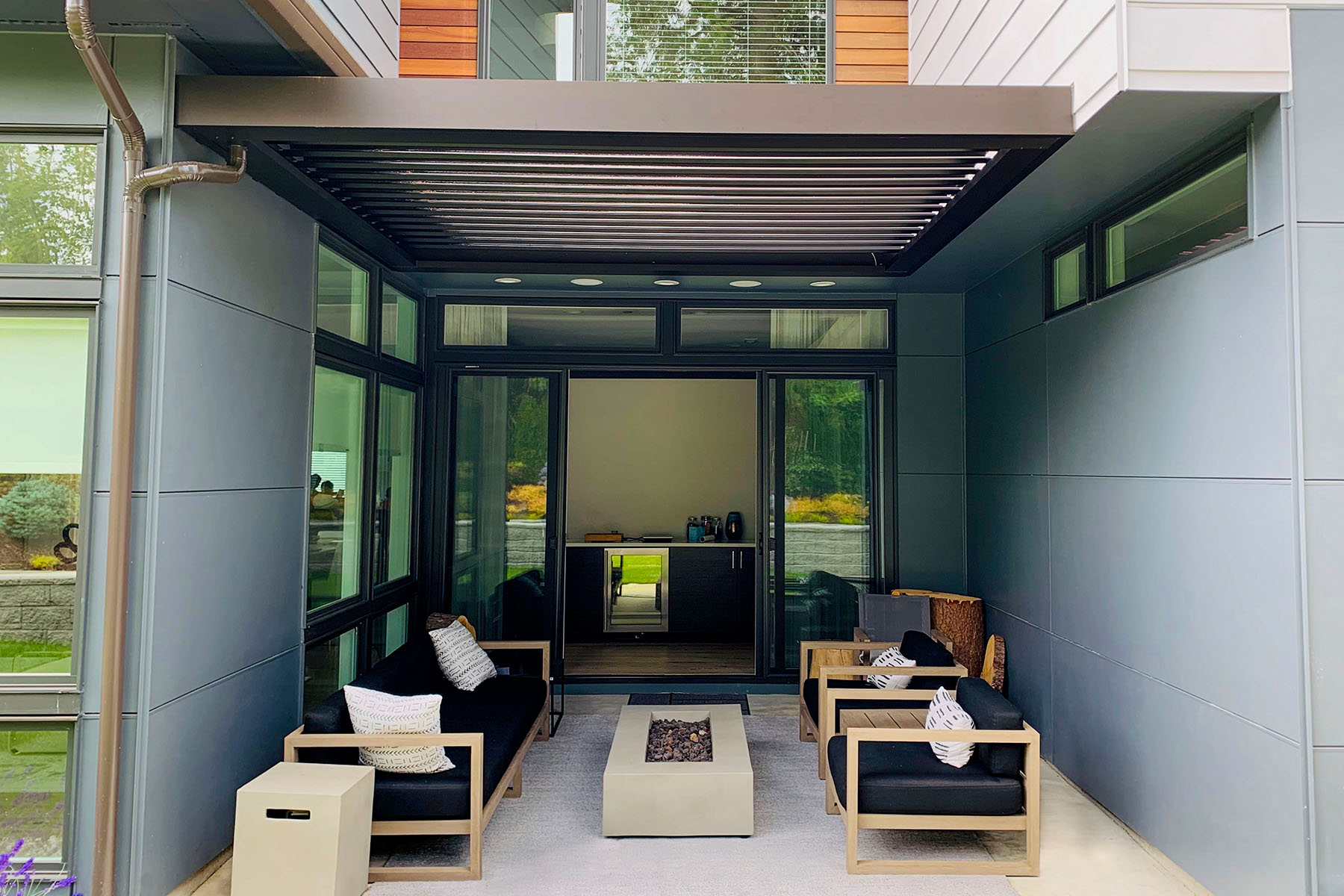

layouts and configurations

Our systems can be crafted to fit a wide variety of spaces.

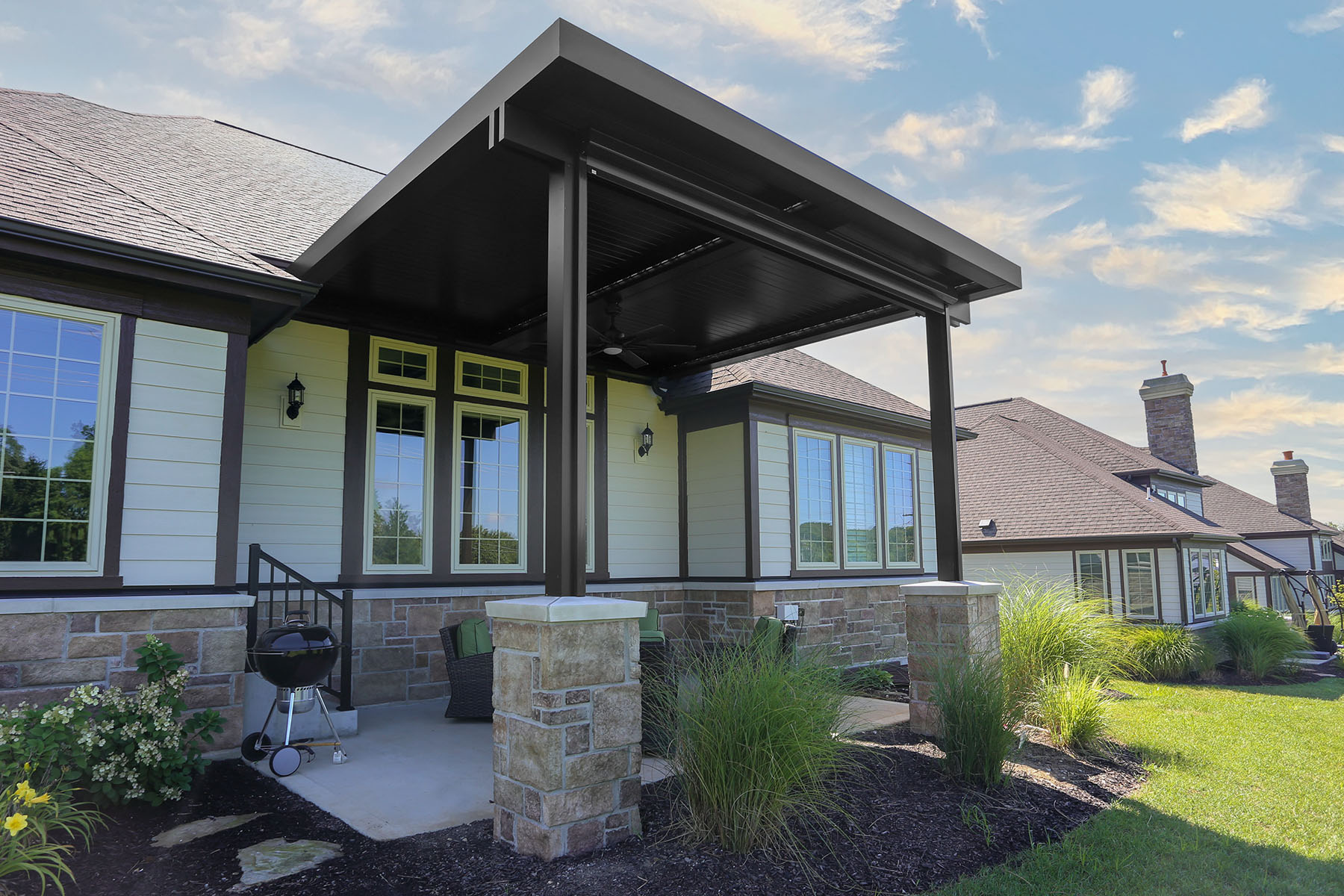

attachment options

Whether you’re looking for a pool-side, freestanding system, or a wall attached cover to extend and enhance your outdoor space, we can help.

Materials

Apollo systems are made using marine grade extruded aluminum components. Also capable of integration into custom designed structures, including those made of timber and steel.

Somy Remote Controlled Louvered Roof

smart capabilities

Enjoy your outdoor experience even more with our Somfy integration. Control your outdoor shade with a keypad, voice control, or mobile device.

accessories

Apollo systems were designed for the integration of accessories. Consult with your dealer on these options.

lighting

A wide variety of lighting options are available to ensure you can enjoy the evening.

fans/heaters

Control airflow and temperature further with the addition of fans and heaters.

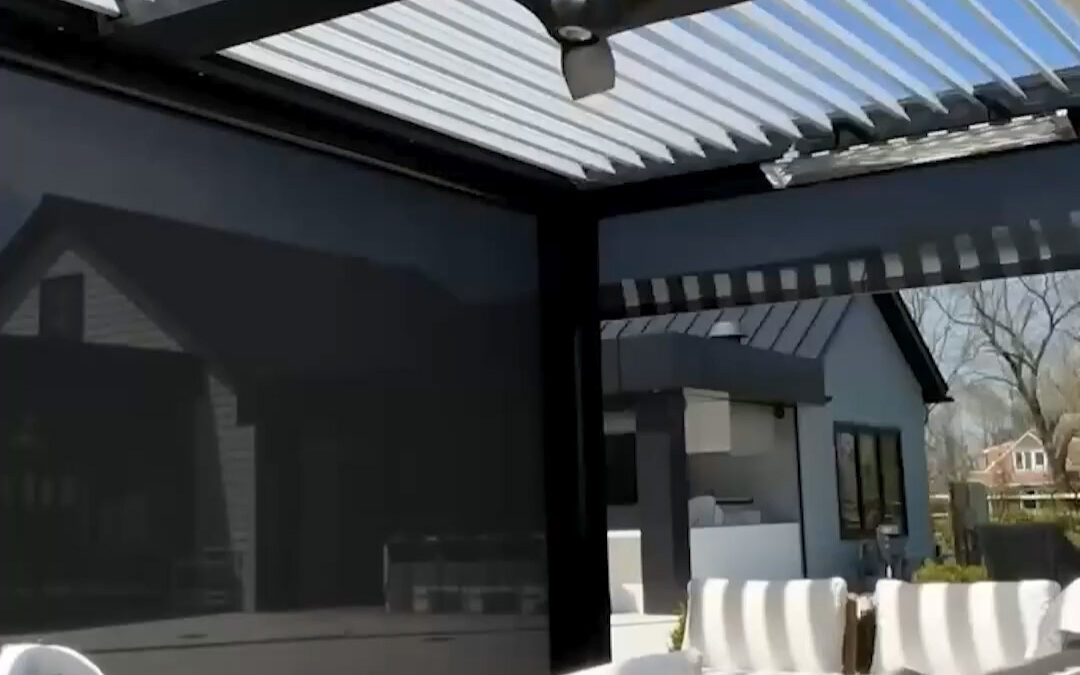

screens

Provide additional shade and privacy with the addition of screens.

*Accessories are not provided by Apollo Opening Roof.

DESIGN AND ENGINEERING

Apollo designers develop all of the required construction documents, which includes structural connection details and site-specific engineering.

INSTALLATION

Designed with the installer in mind for a simple, hassle-free experience.

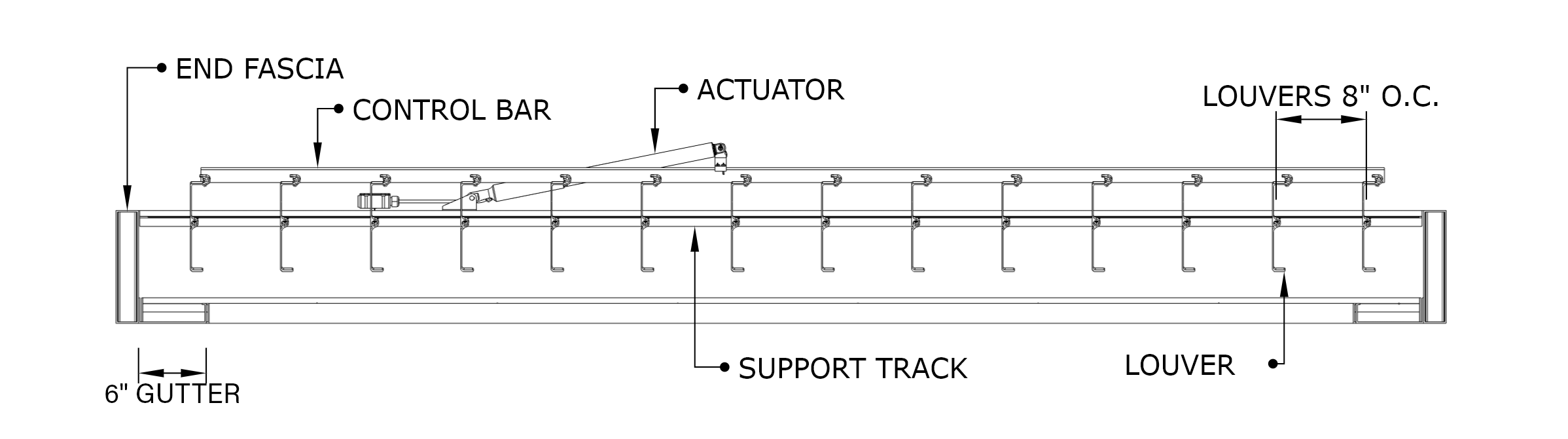

Technical Specifications

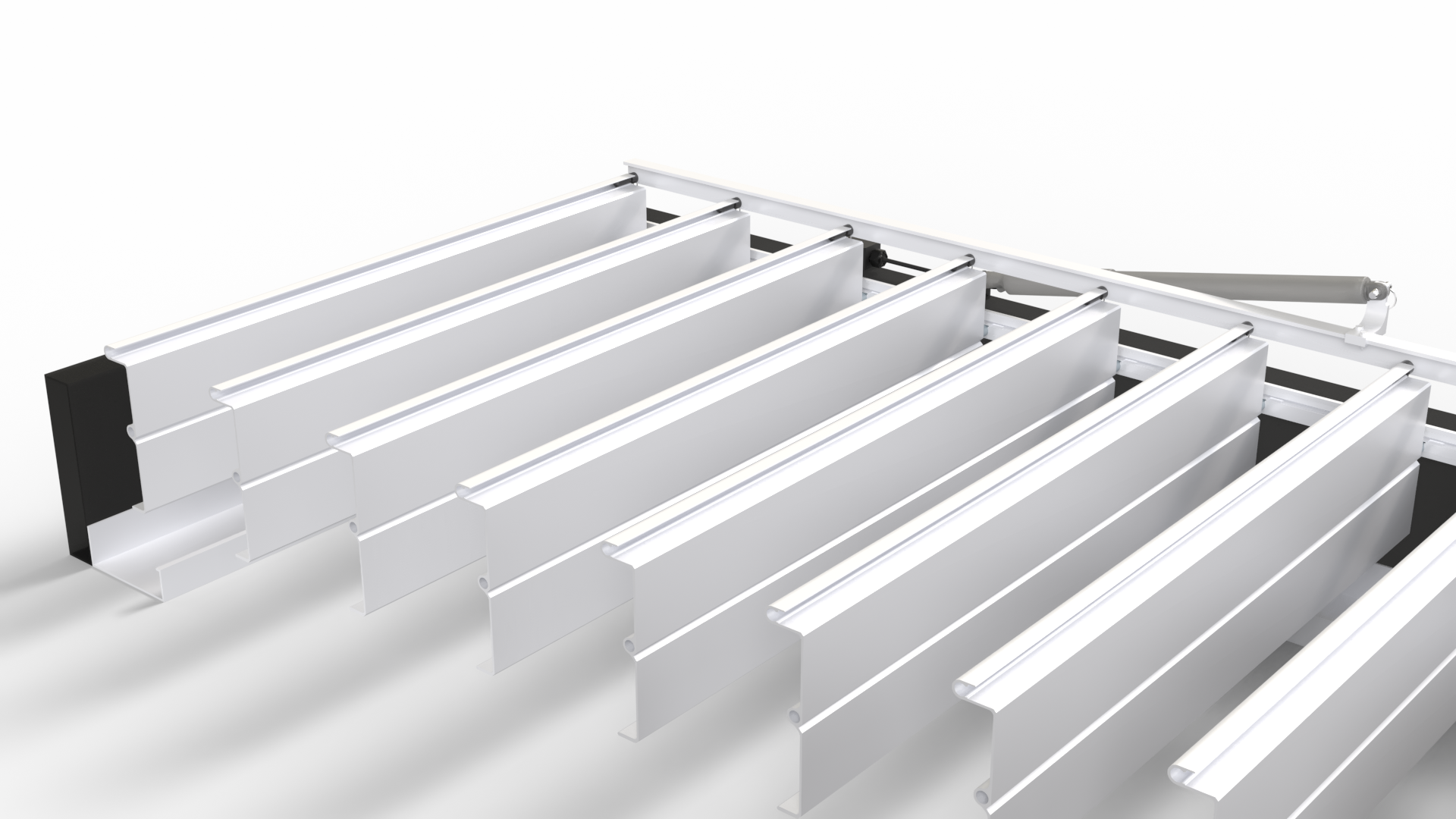

LOUVER / TRACK MATERIAL

6063-T6 Aluminum. All extrusions manufactured following Aluminum Association tolerances to meet ASTM standards.

PIN MATERIAL

Stainless steel and self-lubricating, UV resistant proprietary brushings

EXTRUDED ALUMINUM BEAM AND POST

Beam standard sizes: 2×8 and 2×10. Post standard sizes: 4×4 and 6×6. Additional beam sizes available.

COATINGS

AAMA 2604 electrostatically applied polymer baked enamel provide excellent resistance to stains, scratches, dirt, and UV rays.



*Motor centered on system. Not as shown.

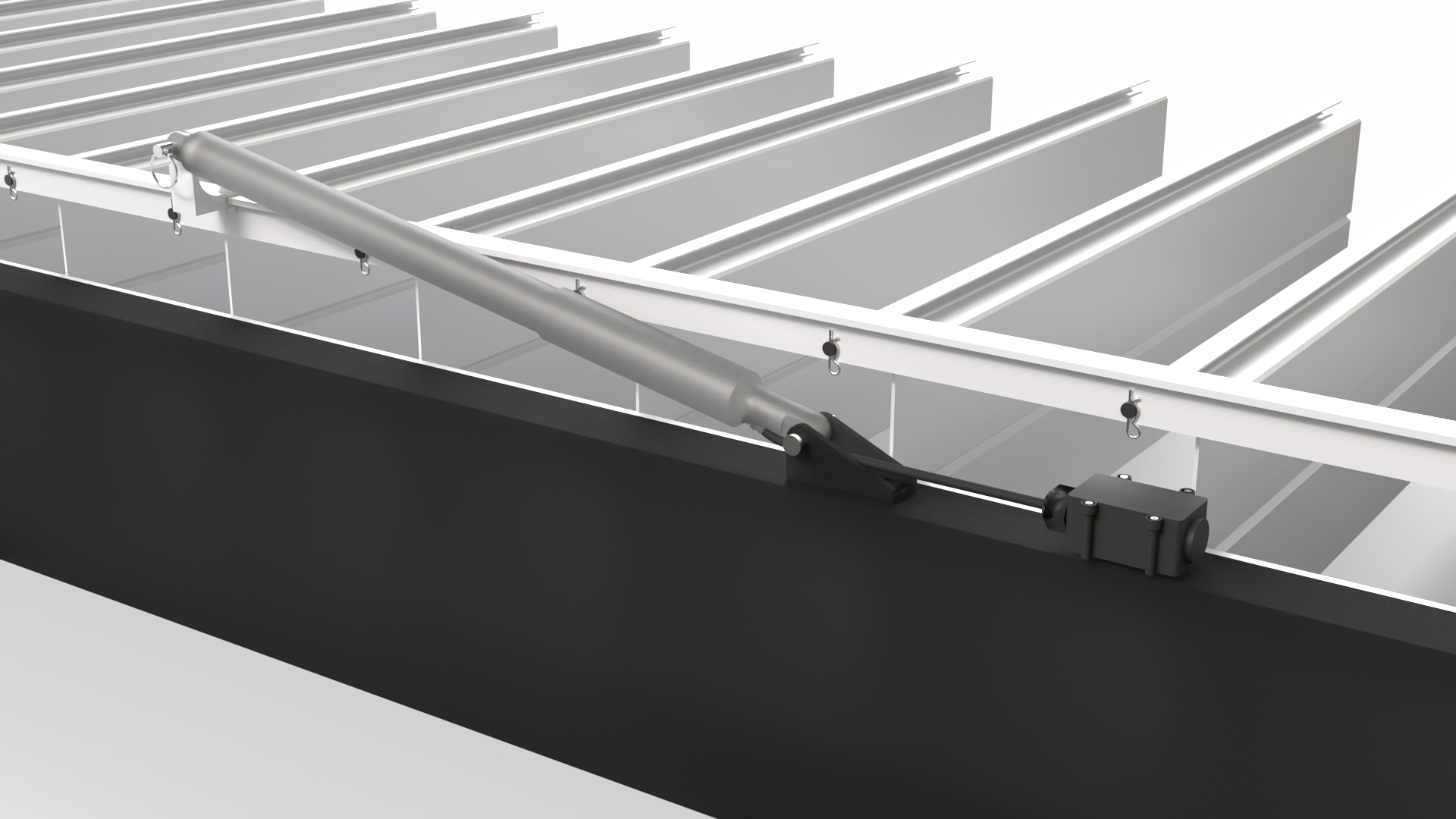

motor

The Apollo Whispertech™ Louver Control System operates with smooth, fluid precision offering years of trouble free performance.

weather sensors

With the addition of weather sensors, your louver system will open and close automatically to keep your space dry and comfortable.

warranty

Apollo Opening Roof system provides a 15/5 warranty on its products. 15 year warranty from defects in materials and finish, and 5 years on electrical components and drive motors.

Ready to Install a Louvered Patio?
